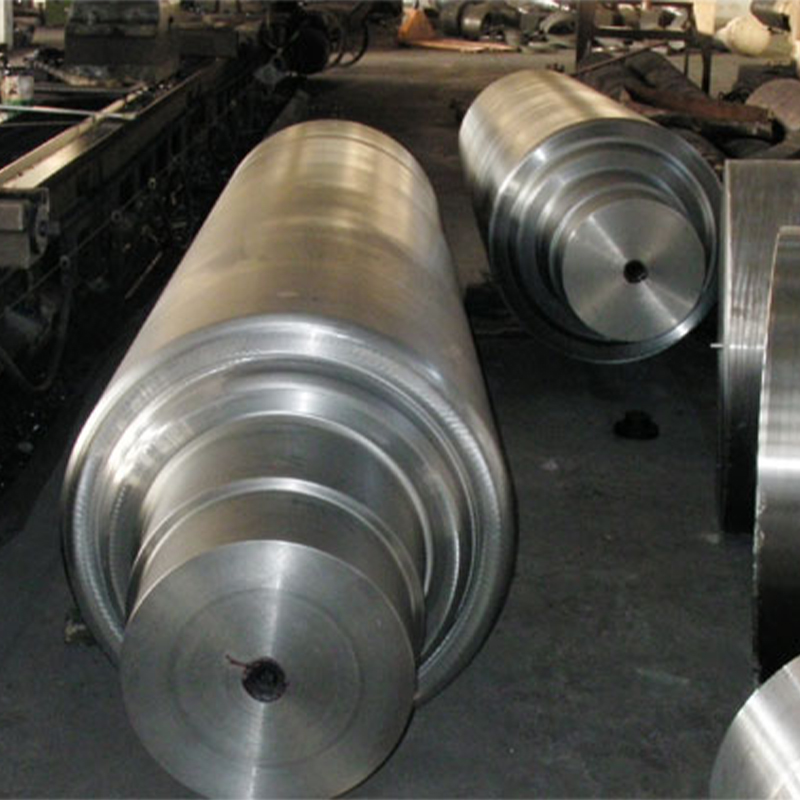

Forged step shaft

Specific Application of Forged Step Shaft

In the modern industrial field, Forged Step Shaft has become an indispensable component in many mechanical equipment due to its unique structure and excellent performance. From simple transmission devices to complex industrial systems, forged step shafts play a vital role.

In the automotive industry, forged step shafts are widely used in many key parts such as engines, transmission systems, and suspension systems. As the core component of the heart of the car, the engine crankshaft needs to withstand huge torque and impact force, and the forged step shaft provides a strong guarantee for the stable operation of the engine with its high strength and excellent fatigue resistance. In addition, in the transmission system, the forged step shaft is used as a transmission shaft to connect the engine and wheels to transmit power. In the suspension system, the forged step shaft is responsible for supporting the body to ensure the smoothness and comfort of driving.

In the aerospace field, forged step shafts also play an important role. In the engines of aircraft and rockets, forged step shafts are used as turbine shafts and transmission shafts, and are subjected to the harsh environment of high temperature, high pressure and high-speed rotation. Its high strength, high toughness and high temperature resistance ensure the stable operation of aircraft engines. In addition, in the control system and rudder system of aerospace vehicles, forged stepped shafts also play a key role to ensure the precise control and stable flight of aircraft.

In the energy industry, forged stepped shafts are also widely used. In oil drilling equipment, forged stepped shafts are used as drill pipes and transmission shafts, bearing the huge tension and torque of drill bits and drill strings. Its high strength and excellent fatigue resistance ensure the stable operation and efficient operation of oil drilling equipment. In addition, in energy equipment such as natural gas compressors and wind turbines, forged stepped shafts also play an important role, providing strong support for the production and utilization of energy.

In heavy machinery and mining equipment, forged stepped shafts also play an important role. These equipment usually need to withstand heavy loads and harsh working environments, and have extremely high requirements for the strength and toughness of the shafts. Forged stepped shafts meet the shaft requirements of these equipment with their unique structure and excellent performance. For example, in heavy machinery such as excavators and loaders, forged stepped shafts are used as transmission shafts and support shafts to ensure the stable operation and efficient operation of the equipment. In mining equipment, forged stepped shafts are used to connect various crushers, screeners and other equipment to transmit power and torque.

In addition to the above major fields, forged stepped shafts are also used in many other fields. For example, in shipbuilding, forged stepped shafts are used in the transmission and propulsion systems of ships; in agricultural machinery, forged stepped shafts are used in the transmission and support systems of various agricultural machinery; in rail transportation, forged stepped shafts are used in the bogies and transmission systems of trains. These applications fully demonstrate the breadth and importance of forged stepped shafts in various industrial fields.

Key considerations in the manufacturing process of Forged Step Shaft

In the field of mechanical manufacturing, Forged Step Shaft is an important transmission component, and its manufacturing process is of great significance to ensure the safe and stable operation of the equipment. Due to its special stepped structure, a series of technical details and quality control points need to be paid special attention to during its manufacturing process.

The material selection of Forged Step Shaft is directly related to its mechanical properties and service life. Generally, high-strength and high-toughness alloy steel or stainless steel materials should be selected. At the same time, the chemical composition, crystal structure and mechanical properties of the material must meet the requirements of specific working conditions. In addition, attention should be paid to the forgeability and machinability of the material to ensure the smooth progress of the subsequent forging and processing processes. Forging is a key link in the manufacturing process of Forged Step Shaft. During the forging process, process parameters such as heating temperature, forging ratio, forging speed and cooling method need to be strictly controlled. The heating temperature should ensure that the material is fully austenitized to improve its forgeability; the forging ratio should be moderate to avoid excessive residual stress inside the material; the forging speed should be uniform and stable to ensure uniform deformation of the shaft body; the cooling method should be reasonable to avoid excessive thermal stress and cracks in the material. Heat treatment is an important means to improve the performance of Forged Step Shaft. After forging, normalizing, quenching, tempering and other heat treatment processes are required to eliminate the residual stress inside the material and improve the strength and toughness of the material. The normalizing temperature should be moderate to ensure that the material obtains a uniform grain structure; the quenching medium should choose a suitable cooling rate to avoid excessive deformation and cracks in the material; the tempering temperature and time should be strictly controlled to ensure that the material obtains good comprehensive performance. The processing accuracy of Forged Step Shaft has an important influence on its performance. During the processing, the processing accuracy and surface quality of each process must be strictly controlled. Turning, milling, grinding and other processing processes should be arranged reasonably to ensure the dimensional accuracy and shape accuracy of the shaft body. At the same time, attention should be paid to the influence of cutting force and cutting heat on material properties during the processing process, and corresponding measures should be taken to control it. Quality inspection is an important means to ensure the quality of Forged Step Shaft. During the manufacturing process, strict quality inspection is required for raw materials, semi-finished products and finished products. Raw material testing should focus on the chemical composition, mechanical properties and forgeability of the material; semi-finished product testing should focus on the dimensional accuracy, shape accuracy and surface quality of the shaft body; finished product testing should focus on the mechanical properties, fatigue life and reliability of the shaft body. In addition, key processes in the manufacturing process need to be monitored and tested to ensure that product quality meets design requirements.
